LIFTS, HOISTS, & JACKS

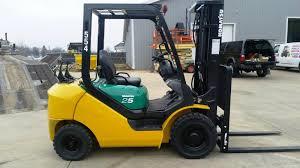

FORK LIFT PROPANE/5000LB LIFT


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: $375.00

Weekly: $995.00

Quantity: for a period of
day(s) week(s)

Additional Information

Dimensions
Length
144.5 in. (3,670 mm)
Height
83.1 in. (2,110 mm)
Width
45.3 in. (1,150 mm)
Weight
7,941 lbs. (3,605 kg)
Wheelbase
65 in. (1,650 mm)
Ground Clearance
Under Mast: 5.5 in. (140 mm)
Center of Wheelbase: 6.2 in. (158 mm)
Turning Radius
88.2 in. (2,240 mm)
Engine & Drivetrain
Engine Make
Nissan
Engine Model
K21
Horsepower
56 hp (41 kW) @ 2,700 rpm
Displacement
126 cu. in. (2,065 cc)
Cylinders
4
Brakes
Service: Foot / hydraulic
Parking: Hand / mechanical
Fuel Tank Capacity
15.3 gal. (58 l)
Fuel Type
LPG
Transmission
Powershift
Operational
Operator Type
Sit-down
Load Center
24 in. (600 mm)
Forks
1.6 x 3.9 x 42 in.
(40 x 100 x 1,070 mm)
thickness x width x length
Mast
2-stage
Height:
Lowered: 85.4 in. (2,170 mm)
Extended: 176 in. (4,470 mm)
Max. Lift Weight
5,000 lbs. (2,267 kg)
Max. Reach
Maximum Fork Height: 128 in. (3,250 mm)
Right Angle Stack
106.1 in. (2,695 mm)
Lift Speed
Loaded: 120 fpm (610 mm/s)
Unloaded: 124 fpm (630 mm/s)
Lower Speed
98 fpm (500 mm/s)
Gradeability
27%
Travel Speed
Loaded: 11.2 mph (18 km/h)
Unloaded: 11.8 mph (19 km/h)
Carriage
40.9 in. (1,040 mm)
ITA Class: II
Wheels
2 front (drive), 2 rear
Tires
Type: Pneumatic
Size:
Front: 7 - 12 - 12PR
Rear: 6 - 9 - 10PR
Axle Load
Loaded:
Front: 11,360 lbs. (5,155 kg)
Rear: 1,590 lbs. (720 kg)
Unloaded:
Front: 3,110 lbs. (1,410 kg)
Rear: 4,840 lbs. (2,195 kg)

* Prices are subject to change.

* Please call us for any questions on our fork lift propane/5000lb lift rentals serving Baltimore and surrounding communities in Central Maryland.
